Steel Cord Conveyor Belt

● Supplying rubber products to the global market

● Import and export trade of conveyor belts, commercial vehicle tires, passenger vehicle tires and raw materials for tire production.

● Gather and exert our strength and wisdom to maintain our healthy development and continuous increment.

Online consulting

Steel Cord conveyor belts select special high strength&perfect flexibility steel cable which is suitable for long distance&heavy loading transportation.The very low elongation enables short take-up.The belt have high resistance to impact damage.Optimum adhesion between rubber and steel cable give the belt more better performance and super long working life.
Transboss steel cord conveyor belts produced as per different standards or the customer’s requirement.

Application:
Used in coal,ore,port,metallurgical,power and chemical industries,suitable for long distance and heavy load transportation of materials.
Standards offered:GB/T9770,DIN22131,EN ISO 15236,SANS1366 and AS1333.
Cover Compounds:General,Fire-resistant,Cold-resistant,Abrasion-resistant,Heat-resistant and Chemical-resistant.

Steel Cord Structure:

K6X7+IWS	K6X19+IWS	K6X19W+IWS

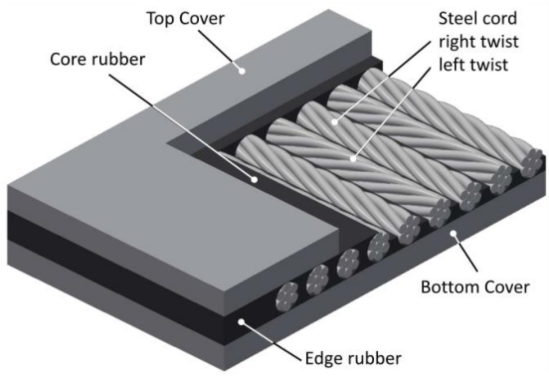

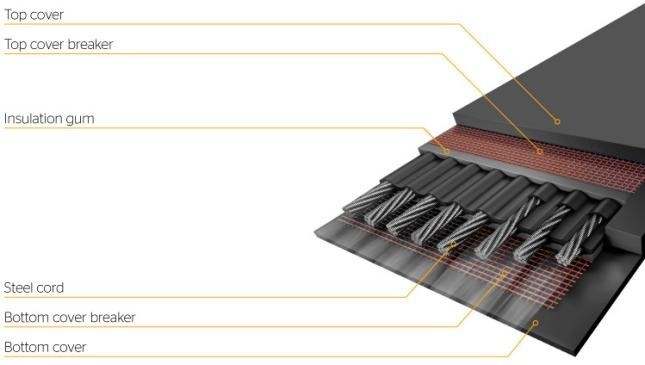

Belt Structures:

Referenced Belt Specifications

Belt Specifications		ST1000	ST1250	ST1600	ST2000	ST2500	ST3150	ST3500	ST4000	ST4500	ST5000	ST5400
Tensile Strength (N/mm)		1000	1250	1600	2000	2500	3150	3500	4000	4500	5000	5400
Max. Diameter of Cord(mm)		4.0	4.5	5.0	6.0	7.2	8.1	8.6	8.9	9.7	10.9	11.3
Pitch(mm) ±1.5		12	12	12	12	15	15	15	15	16	17	17
Min. Rubber Cover Thickness(mm)		4	4	4	4	5	5.5	6	6.5	7	7.5	8
Width (mm)	Tolerance (mm)	Cord Number
800	±8	63	63	63	63	50	50	50	-	-	-	-
1000	±10	79	79	79	79	64	64	64	64	59	55	55
1200	±10	94	94	94	94	76	76	76	77	71	66	66
1400	±12	111	111	111	111	89	89	89	90	84	78	78
1600	±12	126	126	126	126	101	101	101	101	96	90	90
1800	±14	143	143	143	143	114	114	114	117	109	102	102
2000	±14	159	159	159	159	128	128	128	130	121	113	113
2200	±15	-	-	-	176	141	141	141	144	134	125	125

Note:Belt beyond the above specification can also be made by request.

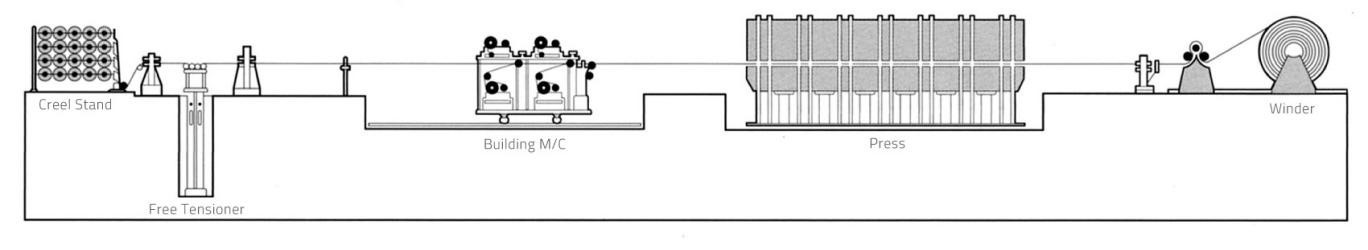

PRODUCTION PROCESS
